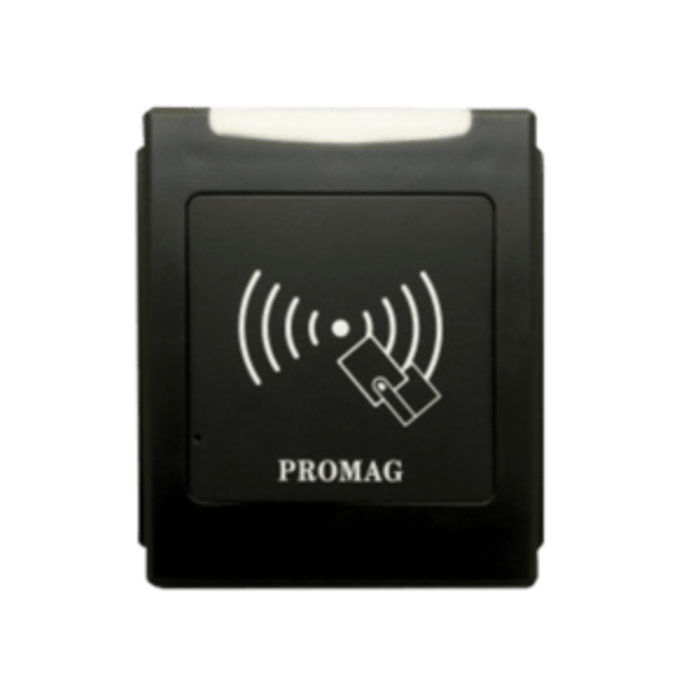

Promag ER755A-00 RFID Sector Reader, 13.56 MHz (MIFARE), Time Recording and Access Control, Ethernet without PoE

The Promag ER755A-00 is a professional RFID sector reader designed for access control and time recording applications. Operating at 13.56 MHz, it supports MIFARE Classic cards (1K, 4K, 8K) and connects via an Ethernet interface compatible with CAT-5 and CAT-6 cables. It does not support Power over Ethernet (PoE), thus requires a separate external power supply.

Key Features

• Supports MIFARE Classic card types (1K, 4K, 8K)
• Ethernet connection (CAT-5 / CAT-6), without PoE
• Built-in relay to control external devices (5A 120VAC or 5A 24VDC)
• Configurable audio (buzzer) and visual (LED) indicators

Power supply requirements are DC 7.5V to 24V with approximately 125 mA current at 12 V. The compact ABS housing is suitable for operation between 0°C and 60°C and humidity range of 10% to 90% relative humidity.

Applications and Compatibility

Ideal for professional systems requiring reading of MIFARE sectors or MAD structures. The absence of PoE support necessitates an external regulated power source.

Please note: Any terminals or devices shown in product images are not included unless explicitly stated.

Manufacturer part number (MPN): ER755A-00
