HID OCR316-E, USB OCR/MSR swipe reader, OCR Reader

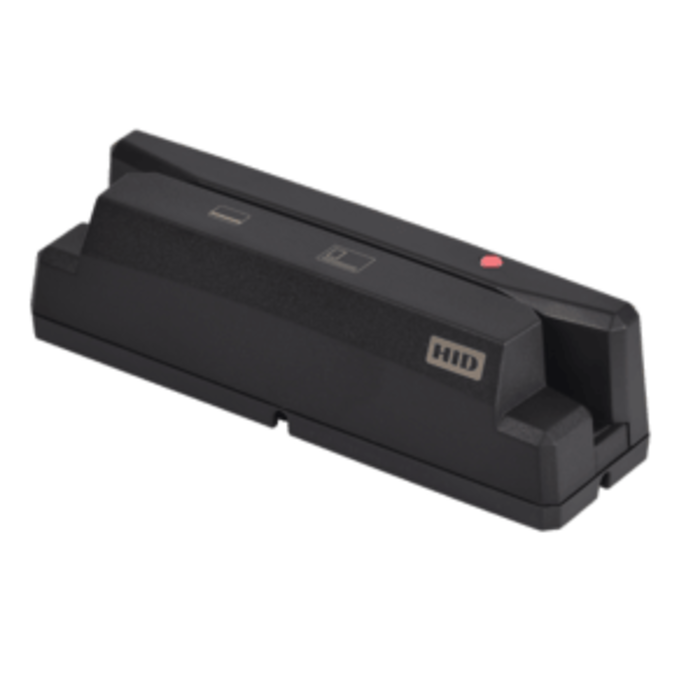

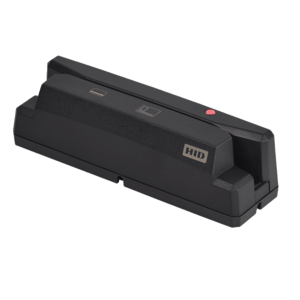

HID OCR316-E OCR/MSR swipe reader

The HID OCR316-E is a compact, bidirectional USB swipe reader for machine-readable zones (MRZ) and magnetic-stripe cards. It reads 2- and 3-line MRZ formats defined by ICAO 9303, near-ICAO travel documents and 1-line MRZ driving licences defined by ISO 18013.

Key features

• Integrated 3-track magnetic-stripe reader to ISO 7811/2-5
• Bidirectional manual swipe operation
• USB connection; 1.8 m connection cable included
• LED and audible read feedback
• Suitable for free-standing, desktop or compatible mounted installation

This is a swipe reader: documents and cards must be passed manually through the reading slot. It is not a full-page document reader or contactless chip reader.

Complete product specifications

OCR Reader, ICAO 9303 specification Parts 1-4 (2- and 3-line MRZ), Near ICAO compliant travel documents (e.g. French ID), ISO-18013 driving licences (1-line MRZ), incl.: Magnetic Swipe Reader (ISO7811/ 2-5), Connection Cable (USB, 1.8 m), Colour: Black

Download datasheet

MPN: OCR316-E
