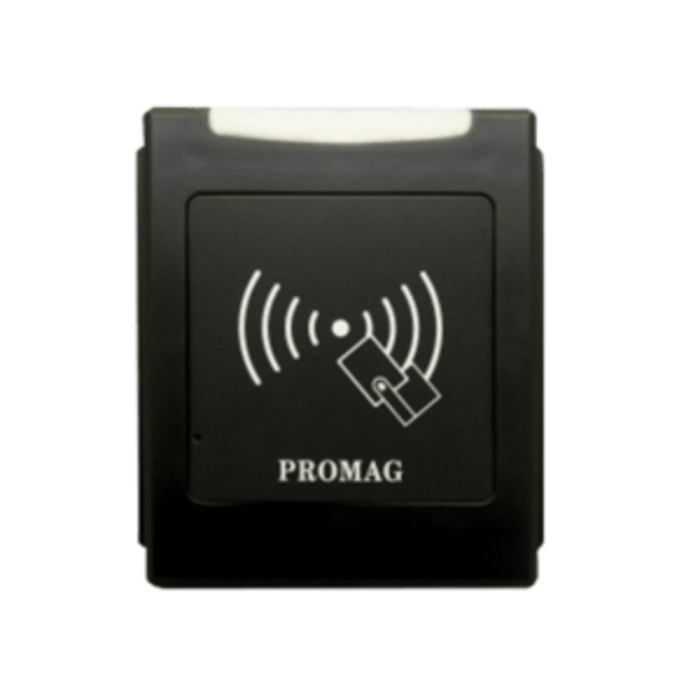

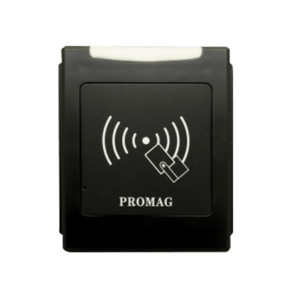

Promag ER750/755 RFID Reader with Ethernet and PoE

Ethernet RFID Reader for Access Control and Time Management

The Promag ER750-10 is a 13.56 MHz RFID reader compatible with MIFARE Classic (1K/4K/8K) cards. It is designed for access control, time and attendance, guest registration, and identity authentication applications.

Key Features

• Supports 13.56 MHz MIFARE Classic cards
• Ethernet interface (CAT-5/CAT-6) with Power over Ethernet (PoE) support for simplified installation
• Built-in relay for direct control of locks or other devices
• Durable ABS housing suitable for indoor and outdoor installation
• Read range up to 7 cm

The ER750-10 model supports PoE (802.3af), reducing installation complexity by combining data and power over a single Ethernet cable. Its integrated relay can switch loads up to 5A at 120VAC or 24VDC, enabling direct control of door locks or similar equipment.

### Compatibility and Variants

The ER750 series offers models with and without PoE support. The ER750-10 features PoE capability for streamlined Ethernet installations. No terminals or additional devices are included; consult manufacturer or distributor for accessories.

Manufacturer part number (MPN): ER750-10
