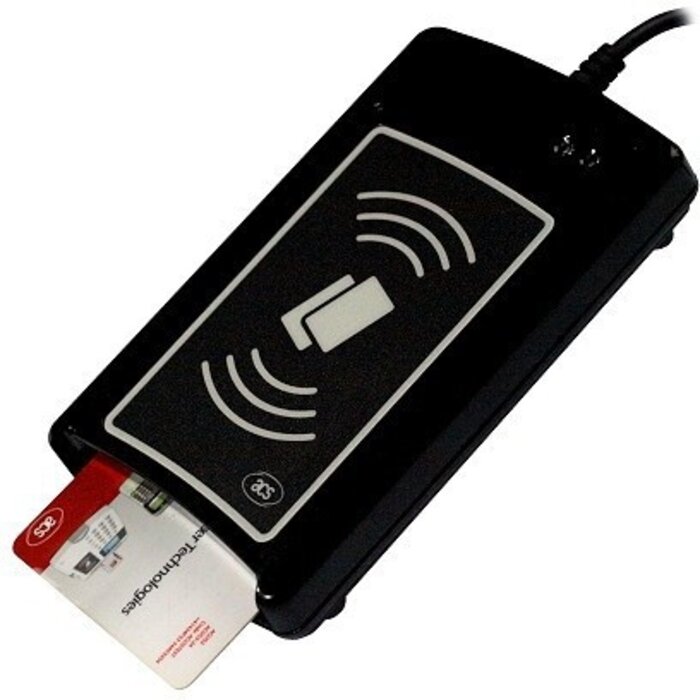

ACS ACR1281U-C8ACSA800 | ACR1281 USB READER CONTACTLESS

Information

Serial Interface
Type ..................................................... RS232 (Standard)
Operation Baud Rate............................ 9,600 – 115,200 bps
Power Source....................................... From USB
Supply Voltage ..................................... Regulated 5 V DC
Supply Current...................................... 200 mA
Universal Serial Bus Interface
Power Source....................................... From USB
Speed................................................... 12 Mbps (High Speed)
Supply Voltage ..................................... Regulated 5 V DC
Supply Current...................................... 200 mA
Contactless Smart Card Interface
Standard............................................... ISO 14443 A and B
Protocol................................................ Mifare® Classic protocols, Mifare® DESFire protocols, Mifare Mini protocols
Smart Card Read/Write Speed ............. 106 kbps
Physical Specifications

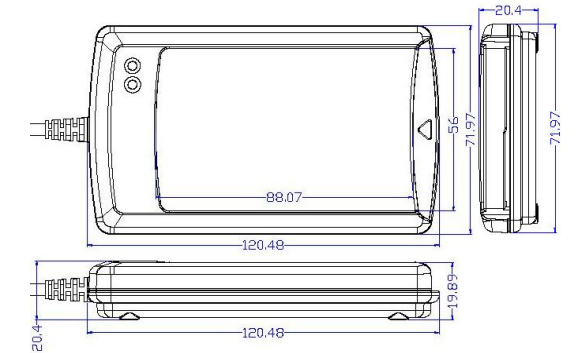

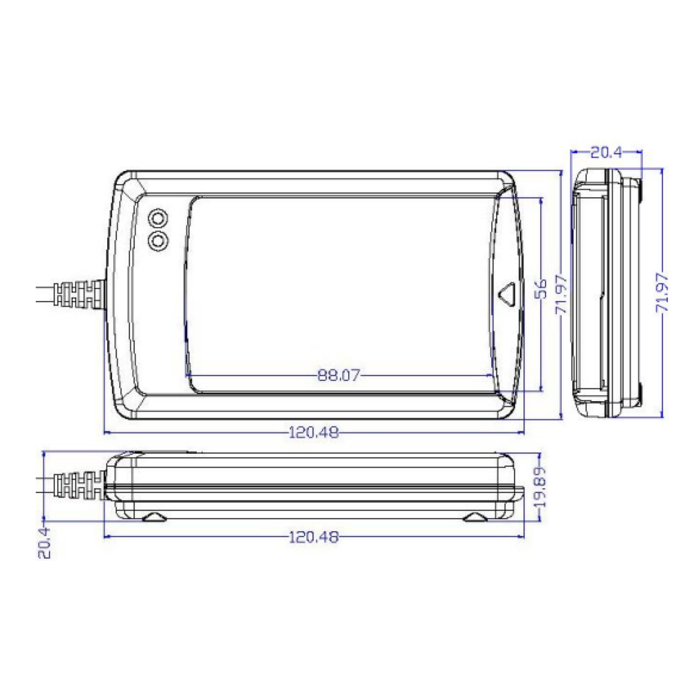

Dimensions........................................... 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Color..................................................... Black
Weight.................................................. 150 g
Operating Conditions
Temperature......................................... 0 – 50 °C
Humidity ............................................... 10% - 90%
Certification/Compliance
CE, FCC, RoHS
Device Driver Operating System Support
Windows® 98, ME, NT (Serial), 2000, XP, Vista, 7, Server 2003, Server 2003 R2, Server 2008, Server 2008 R2
Linux
