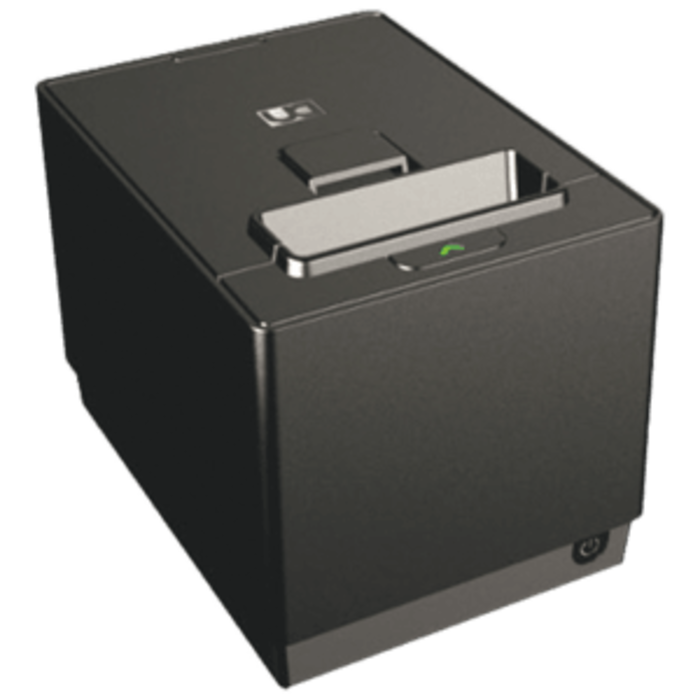

Diebold Nixdorf P1200, USB, 8 dots/mm (203 dpi), cutter, black, 80 mm

Diebold Nixdorf P1200 USB receipt printer

TheDiebold Nixdorf P1200 CRP1200-BLA-JT50is a black direct-thermal receipt printer for POS, self-service and kiosk applications. This exact configuration combines 203 dpi printing, a USB Type-B host connection, a cash-drawer interface and an integrated cutter.

Fast 80 mm receipt printing

The P1200 prints on media up to 80 mm wide at a maximum specified speed of approximately 355–356 mm/s, depending on print density and operating conditions. The 203 dpi mechanism supports text, graphics and common 1D/2D receipt barcodes. The maximum roll diameter for this DIEBOLD NIXDORF configuration is 90 mm.

USB interface and POS compatibility

This SKU uses USB Type-B for host communication and provides a cash-drawer kick-out interface. Driver, emulation and application compatibility must be checked against the intended POS software. The printer supports P1200/TH230 and ESC/POS-related operating modes documented by Diebold Nixdorf, but actual command availability depends on configuration and firmware.

Cutter and paper handling

The integrated cutter is designed for high-throughput receipt workflows. Use approved direct-thermal paper with suitable width, thickness and coating. Print speed, cutter life and print quality depend on media, print coverage, maintenance and environmental conditions.

Ordering checklist

• manufacturer part number CRP1200-BLA-JT50;
• black P1200, 203 dpi;
• USB Type-B interface;
• integrated cutter and cash-drawer output;
• power supply ordered separately;
• paper and data cable not assumed to be included unless explicitly listed.

Complete product specifications

receipt printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 80 mm, roll diameter (max.): 90mm, speed (max.): 356 mm/s, USB, drawer kickout, cutter, order separately: power supply unit, colour: black

Download datasheet

MPN: CRP1200-BLA-JT50
