Zebra Workstation Connect Cradle, 4x USB, 3.5mm, Ethernet

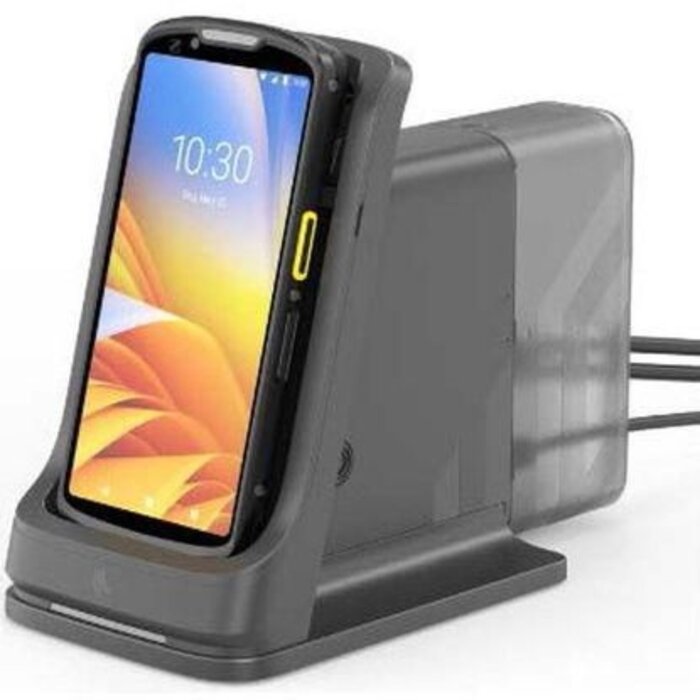

Zebra Workstation Connect Cradle for TC22, TC27, HC2X and HC5X – CRD-TC2L-1SNWS-01

The Zebra CRD-TC2L-1SNWS-01 turns a compatible TC22, TC27, HC2X or HC5X mobile computer into a workstation or kiosk through Zebra Workstation Connect. It connects the handheld to an external display and standard desktop peripherals while keeping the installation centred on one mobile device.

Connectivity and use

• Compatible with Zebra TC22, TC27, HC2X and HC5X mobile computers
• HDMI output for an external monitor
• Ethernet for wired network connectivity
• Four USB-A ports for keyboard, mouse and other peripherals
• 3.5 mm headset jack
• Includes the cradle and device shims

Power requirements

The power components are not included. Zebra specifies power supplyPWR-BGA12V50W0WW, DC line cordCBL-DC-388A2-01and a country-specific grounded AC line cord. The specified power supply provides 12 VDC at 4.16 A.

Technical specifications

Use the complete part number CRD-TC2L-1SNWS-01 when checking device and power compatibility; similarly named Connect Cradles for other Zebra mobile-computer families are not interchangeable.

View the official Zebra TC22/TC27 accessories guide

Complete product specifications

Workstation Connect Cradle, HDMI, Ethernet, 4x USB, 3.5mm Headset Jack, compatible with or without rugged boot, order separately: power supply, AC and DC cable, fits for: TC22, TC27

Download datasheet

MPN: CRD-TC2L-1SNWS-01
