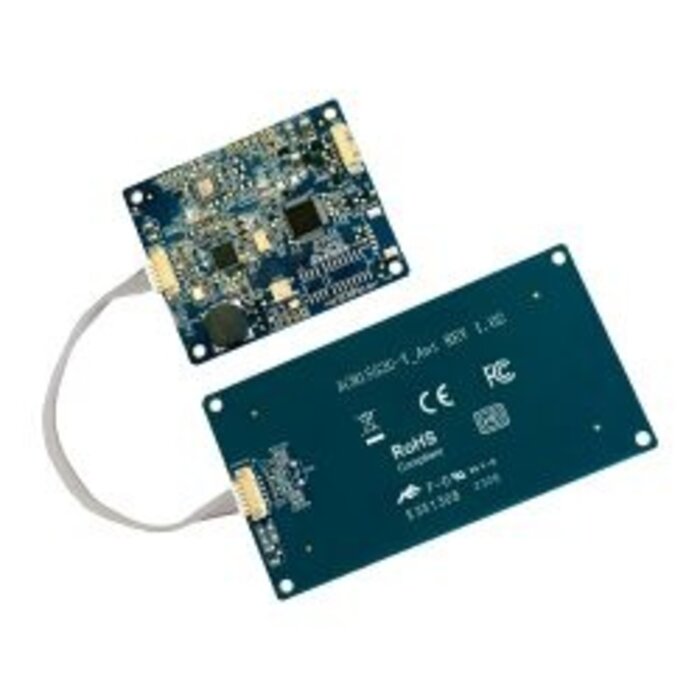

ACS ACM1552U-Y3 USB NFC Reader Module with Detachable Antenna Board

The ACS ACM1552U-Y3 is a USB NFC Reader Module designed for easy integration into embedded systems, operating at 13.56 MHz. It supports contactless cards and devices compliant with ISO 14443, ISO 15693, and ISO 18092 standards.

Key Features

• High-speed communication with read/write speeds up to 848 kbps.
• Versatile NFC modes including Smart Card Reader/Writer, Card Emulation, and configurable Keyboard Emulation.
• Detachable antenna board for flexible installation separate from the main module.

Compatibility and Applications

Equipped with a USB 2.0 Full Speed (12 Mbps) interface and USB Type-A connector. Compatible with Windows®, Linux®, macOS®, and Android™ operating systems. Supports a wide range of cards, including MIFARE Classic®, Mini, Ultralight®, FeliCa, and Topaz. Features user-controllable bi-color LED and monotone buzzer for visual and audible feedback.

Ideal for embedded NFC solutions requiring robust and flexible reader modules. USB cables or end devices are not included.

Manufacturer part number (MPN): ACM1552U-Y3
