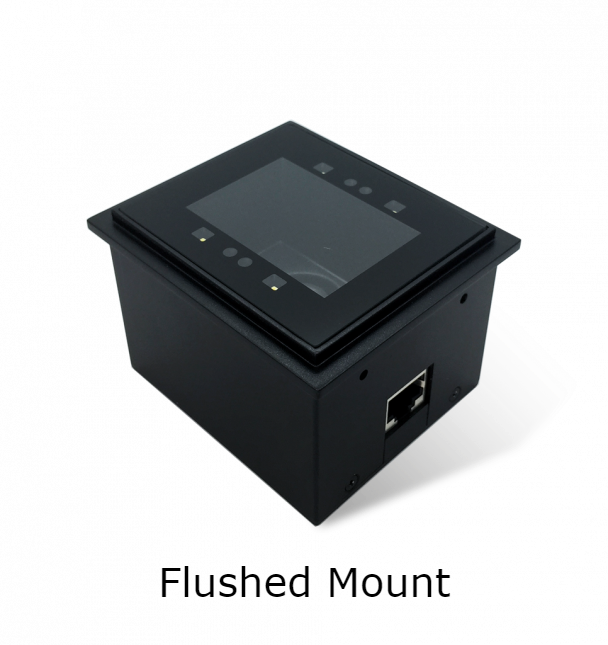

Newland FM30 Grouper II Series

239,21 Incl. tax€197,69 Excl. tax Out of stock
Unit price: €197,00
With its snappy barcode reading of virtually any 1D or 2D barcode, the FM3051 Grouper is the perfect response to the trend of barcodes moving from paper to the screen. Read more
  • NLS-FM3056-28 Flushed mount 2D CMOS fixed mounted reader for kiosk integration with flush glass front, optimized to read from cell phone & paper. Including data formatting & RS232 cable / multi plug adapter (Grouper II)
  • NLS-FM3056-20 Flushed mount 2D CMOS fixed mounted reader for kiosk integration with flush glass front, optimized to read from cell phone & paper. Including data formatting & USB cable (Grouper II)
  • NLS-FM3051-28 Recessed mount 2D CMOS fixed mounted reader for kiosk integration, optimized to read from cell phone & paper. Including data formatting & RS232 cable / multi plug adapter (Grouper II)
  • NLS-FM3051-20 Recessed mount 2D CMOS fixed mounted reader for kiosk integration, optimized to read from cell phone & paper. Including data formatting & USB cable (Grouper II)
  • VAT is shifted after creating an account!
  • Would you like a quote? mail [email protected]
  • Stock items 1-3 working days delivery time!
  • Shipping throughout Europe and beyond!
  • Helps your business grow by integrating automation!
  • Your #1 RFID, IOT and AUTO-ID specialist!

Specifications

Brand:
Newland
Article number:
NLS-FM3056-28
Availability:
Out of stock
Delivery time:
Contact us for current delivery time

Information

Flushed Mount

The FM3056 Grouper is a flush mount scanner with a minimal footprint. With a height of only 53mm, the device is small enough to fit into most kiosks and POS systems, while the flush mount ensures that the device suits any business environment.

The FM3056 Grouper is the flush mount equivalent of the FM3051 Grouper.

Features

Superior decoding performance.
Your employees can scan virtually any barcode, including 1D and 2D, at an extraordinary speed.

Effortless scanning from mobile phone screen.
Built to read from an LCD screen, the FM3056 Grouper can easily read barcodes from any mobile device screen. An extended capability of IR reading allows the device to detect barcodes under virtually any ambient light. Whether you operate at daytime or nighttime, scanning is quick and efficient.

Easily mounted in small spaces.
The FM3056 Grouper is designed for businesses that require high performance and a minimal footprint. With its small size, the device is ideal for kiosk integration and other POS solutions.

Easy to install.
The FM3056 Grouper can be set up quickly and easily. A plug-and-play simplicity enhances your experience right from the start. The device can be further configured according to your needs by using a simple barcode programming guide.

Application scenarios.
POS Solutions, kiosk integration, scanning from a mobile phone screen, such as for loyalty programs or ticket validation.

Technical specifications

Performance
Processor 0390 Chip+MCU
Minimal Print Contrast 25%
Scan Angle Roll 360°
Scan Angle Pitch ±40°
Scan Angle Skew ±40°
Field of View Horizontal 75°
Field of View Vertical 50°
Scan Window 31.5mm×46.5mm
Data Capture
1D All major 1D symbologies including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey.
2D All major 2D symbologies including DF417, Data Matrix, QR Code, Chinese Sensible Code.
Image Sensor CMOS 752*480
Illumination White LED
Scan Modes Sense Mode, Continuous Mode
Scan Rate 60 frames per second
Physical
Dimensions (mm) 78.7(W)×67.7(D)×53(H)mm (max.)
Weight 168g
Material PBT,ABS,Aluminium
Interfaces RS-232, USB
Notifications Beep
Input Voltage 5VDC±5%
Current @ 5VDC Operating 108mA (typical), 114mA (max.)
Power Consumption 534mW (typical)
Power Supply Input DC5V, 1.5A
Power Supply Output AC100~240V, 50~60Hz
Environmental
Operating Temperature -20℃ to 60℃ (-4°F to 140°F)
Storage Temperature -40℃ to 70℃(-4°F to 158°F)
Humidity 5%~95% (non-condensing)
Electro Static Discharge (ESD) ±8 KV (air discharge); ±4 KV (direct discharge)
Software
Configuration Tools EasySet
Certifications
Hardware FCC Part15 Class B, CE EMC Class B,KC
Warranty
Standard 2 years



Recessed Mount

With its snappy barcode reading of virtually any 1D or 2D barcode, the FM3051 Grouper is the perfect response to the trend of barcodes moving from paper to the screen. Built to read from contemporary LCD widescreen devices, the fixed scanner is ideal for mobile phone applications like loyalty programs and ticket validation. Whether it’s an employee scanning a productlabel or a customer scanning a voucher on their mobile phone, barcode scanning is always easy and quick.
